LED DOWNLIGHT SERIES

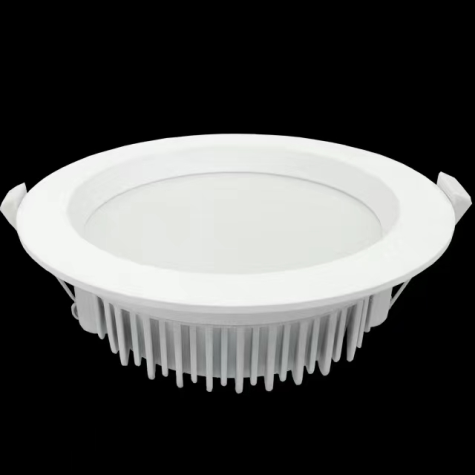

Die-Cast Aluminum Recessed LED Downlight

A durable recessed downlight family with die-cast aluminum housings for stable heat dissipation across multiple wattages and cutout sizes. The series supports project selection, distributor programs and OEM packaging.

Key Features

12W, 15W, 25W and 35W model options
Multiple diameters and cutouts for project matching
Selectable 3000K to 6000K color temperatures
Triac dimming available
White, white with black and selected metal finish options

Pricing is quoted according to the selected model, specification and order quantity.

SPECIFICATIONS

Available Models and Specifications

Models & Electrical

Models: SF-DF01-C108, SF-DR01-C140, SF-DR01-C190, SF-DR01-C225
Wattage: 12W / 15W / 25W / 35W
Input: AC200-240V, 50/60Hz
Power factor: ≥0.9
Dimming: Triac

Light Output

LED: 2835 SMD
CCT: 3000K / 4000K / 5000K / 6000K
CRI: ≥80
Lumens: 750-2300lm, model dependent
Beam angle: 90°

Dimensions & Housing

Diameter: Approximately 108-225mm
Cutout: Multiple options from approximately 90-200mm; confirm the selected version
Material: Die-cast aluminum
IP rating: IP40
Finish: White and selected two-tone or metal finishes

APPLICATIONS & PACKAGING

Plan the Complete Order

Application Scenarios

Suitable for residential developments, hotels, offices, stores, corridors and commercial fit-out projects requiring several wattage and cutout options within one coordinated product family.

Packaging Information

Standard unit box and export carton are available. Packing quantity and carton size depend on the selected diameter. OEM label, color box, logo and carton marks can be prepared after confirmation.

OEM & ODM OPTIONS
